RENK品牌介紹
RENK于1873年在德國奧格斯堡（Augsburg）創立，是歷史超過140多年的德國企業，年銷售額50億歐元，它是MAN集團子公司。主要生產制造特殊齒輪箱（Special Gear Units), 汽車變速器（Vehicle Transmissions)，標準齒輪箱(Standard Gear Units)和滑動軸承(Slide Bearings)。
RENK滑動軸承由德國漢諾威廠（RENK AG Hannover Plant）生產，與電動機相關的主要軸承型號有EF系列，EM系列，ER/EG系列，ZM系列。
RENK軸瓦型號
| SIZE | EM Series | EF Series | ||
|---|---|---|---|---|
| 自潤滑滑動軸承 | 獨立油潤滑滑動軸承 | 自潤滑滑動軸承 | 獨立油潤滑滑動軸承 | |
| natural cooling | external oil cooling | natural cooling | external oil cooling | |
| 9 | EMNLB 9-80 | EMZLB 09-080 | EFNLB 9-80 | EFZLB 9-80 |
| EMNLB 09S-80 | EMZLB 9S-100 | EFNLB 9-90 | EFZLB 9-90 | |
| EMNLB 09S-080 | EMZLQ 9-80 | EFNLQ 9-80 | EFZLB 09-100 | |
| EMNLB 9S-080 | EMZLQ 09-080 | EFNLQ 9-90 | EFZLQ 9-80 | |
| EMNLB 9-90 | EFZLQ 09-90 | |||
| EMNLQ 9-80 | ||||
| EMNLQ 09-80 | ||||
| 11 | EMNLB 11-110 | EMZLB 11-110 | EFNLB 11-090 | EFZLB 11-090 |
| EMNLB 11-125 | EMZLB 11-125 | EFNLB 11-110 | EFZLB 11-110 | |
| EMNLQ 11-110 | EMZLQ 11-110 | EFNLB 11-125 | EFZLB 11-125 | |
| EMNLQ 11-125 | EMZLQ 11-125 | EFNLQ 11-110 | EFZLQ 11-110 | |
| EFNLQ 11-125 | EFZLQ 11-125 | |||
| 14 | EMNLB 14-125 | EMZLB 14-125 | EFNLB 14-125 | EFZLB 14-125 |
| EMNLB 14-140 | EMZLB 14-140 | EFNLB 14-140 | EFZLB 14-140 | |
| EMNLQ 14-125 | EMZLQ 14-125 | EFNLQ 14-125 | EFZLQ 14-125 | |
| EMNLQ 14-140 | EMZLQ 14-140 | EFNLQ 14-140 | EFZLQ 14-140 | |
| 18 | EMNLB 18-160 | EMZLB 18-160 | EFNLB 18-160 | EFZLB 18-160 |
| EMNLB 18-180 | EMZLB 18-180 | EFNLB 18-180 | EFZLB 18-180 | |
| EMNLB 18-200 | EMZLB 18-200 | EFNLB 18-200 | EFZLB 18-200 | |
| EMNLQ 18-160 | EMZLQ 18-160 | EFNLQ 18-160 | EFZLQ 18-160 | |
| EMNLQ 18-180 | EMZLQ 18-180 | EFNLQ 18-180 | EFZLQ 18-180 | |
| EMNLQ 18-200 | EMNLQ 18-200 | EFNLQ 18-200 | EFZLQ 18-200 | |
| 22 | EMNLB 22-200 | EMZLB 22-200 | EFNLB 22-200 | EFZLB 22-200 |
| EMNLB 22-225 | EMZLB 22-225 | EFNLB 22-225 | EFZLB 22-225 | |
| EMNLB 22-250 | EMZLB 22-250 | EFNLB 22-250 | EFZLB 22-250 | |
| EMNLB 22-280 | EMZLB 22-280 | EFNLB 22-280 | EFZLB 22-280 | |
| EMNLB 22-300 | EMZLB 22-300 | EFNLB 22-300 | EFZLB 22-300 | |
| EMNLQ 22-200 | EMNLQ 22-200 | EFNLQ 22-200 | EFZLQ 22-200 | |
| EMNLQ 22-225 | EMNLQ 22-225 | EFNLQ 22-225 | EFZLQ 22-225 | |
| EMNLQ 22-250 | EMNLQ 22-250 | EFNLQ 22-250 | EFZLQ 22-250 | |
| EMNLQ 22-280 | EMNLQ 22-280 | EFNLQ 22-280 | EFZLQ 22-280 | |
| EMNLQ 22-300 | EMNLQ 22-300 | EFNLQ 22-300 | EFZLQ 22-300 | |
| 28 | EMNLB 28-250 | EMZLB 28-250 | EFNLB 28-250 | EFZLB 28-250 |
| EMNLB 28-280 | EMZLB 28-280 | EFNLB 28-280 | EFZLB 28-280 | |
| EMNLB 28-300 | EMZLB 28-300 | EFNLB 28-300 | EFZLB 28-300 | |
| EMNLB 28-315 | EMZLB 28-315 | EFNLB 28-315 | EFZLB 28-315 | |
| EMNLB 28-335 | EMZLB 28-335 | EFNLB 28-335 | EFZLB 28-335 | |
| EMNLB 28-355 | EMZLB 28-355 | EFNLB 28-355 | EFZLB 28-355 | |
| EMNLQ 28-250 | EMNLQ 28-250 | EFNLQ 28-250 | EFZLQ 28-250 | |
| EMNLQ 28-280 | EMNLQ 28-280 | EFNLQ 28-280 | EFZLQ 28-280 | |
| EMNLQ 28-300 | EMNLQ 28-300 | EFNLQ 28-300 | EFZLQ 28-300 | |
| EMNLQ 28-315 | EMNLQ 28-315 | EFNLQ 28-315 | EFZLQ 28-315 | |
| EMNLQ 28-335 | EMNLQ 28-335 | EFNLQ 28-335 | EFZLQ 28-335 | |
| EMNLQ 28-355 | EMNLQ 28-355 | EFNLQ 28-355 | EFZLQ 28-355 | |
相關產品照片

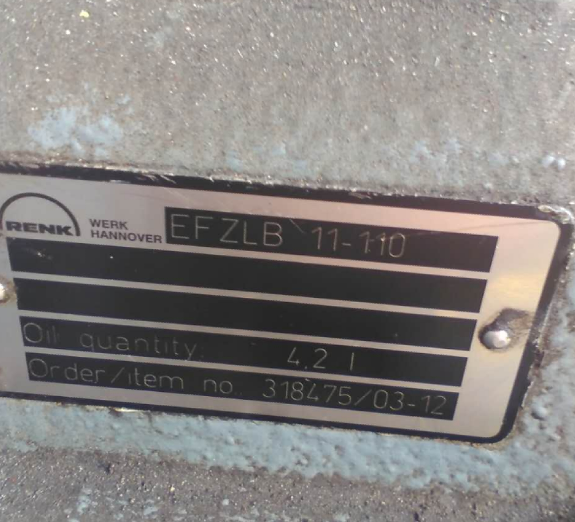

軸瓦型號銘牌

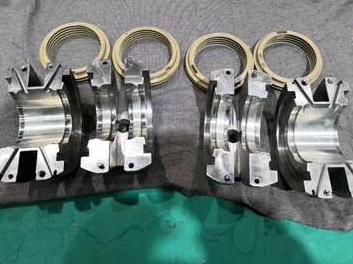

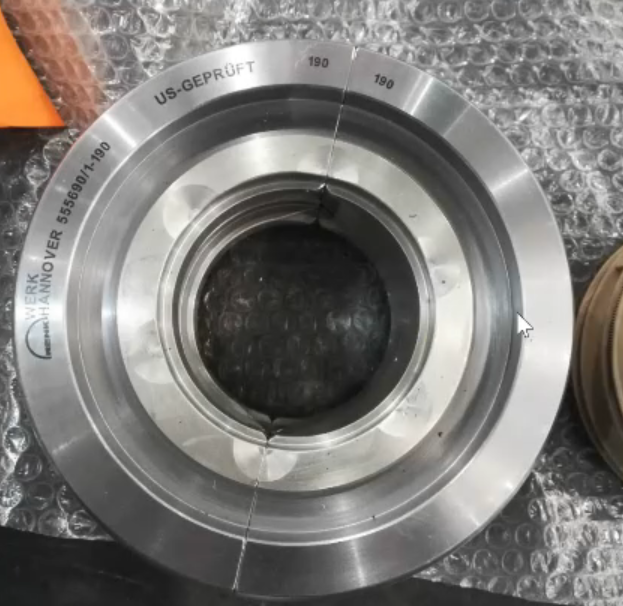

軸瓦

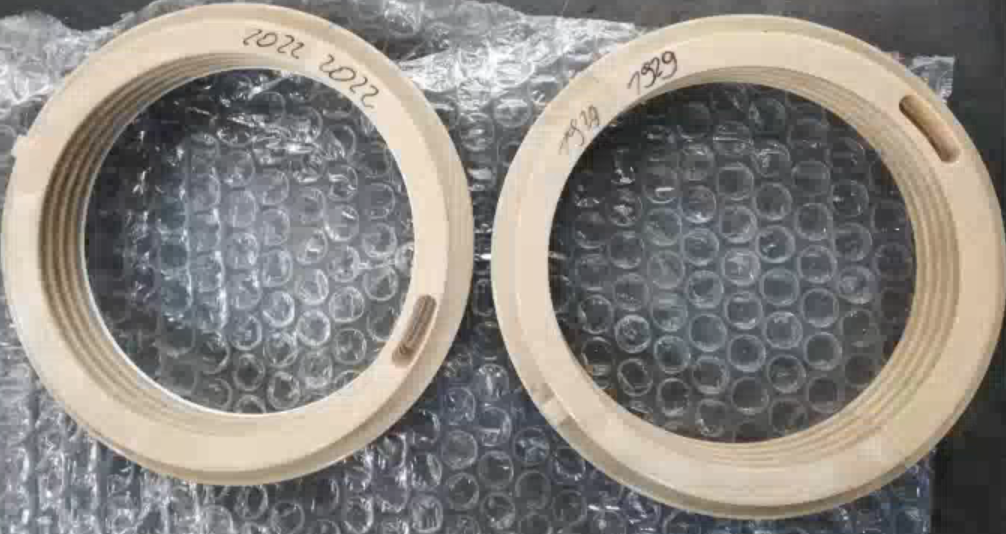

油封

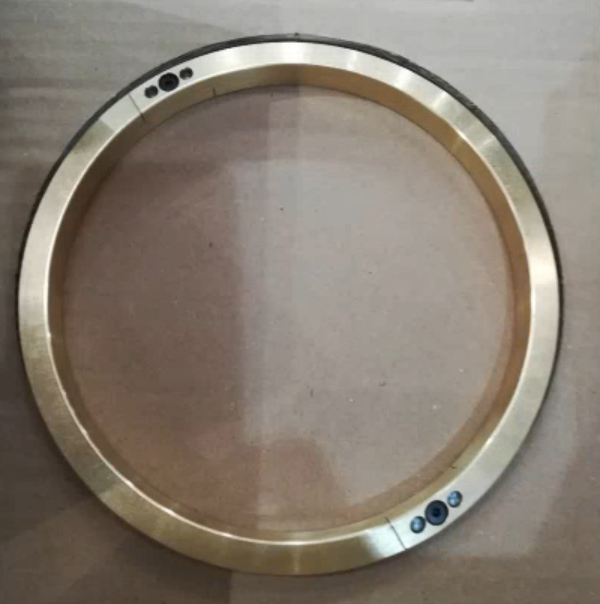

油環

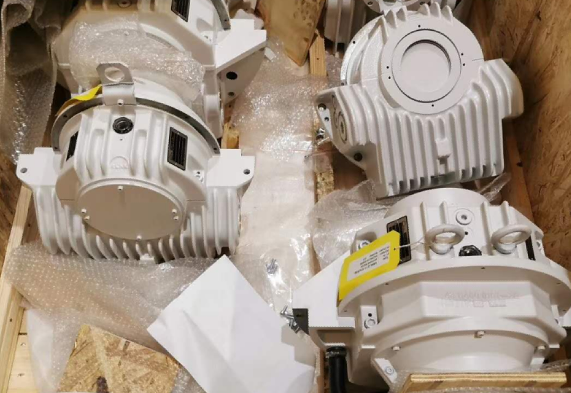

軸承座

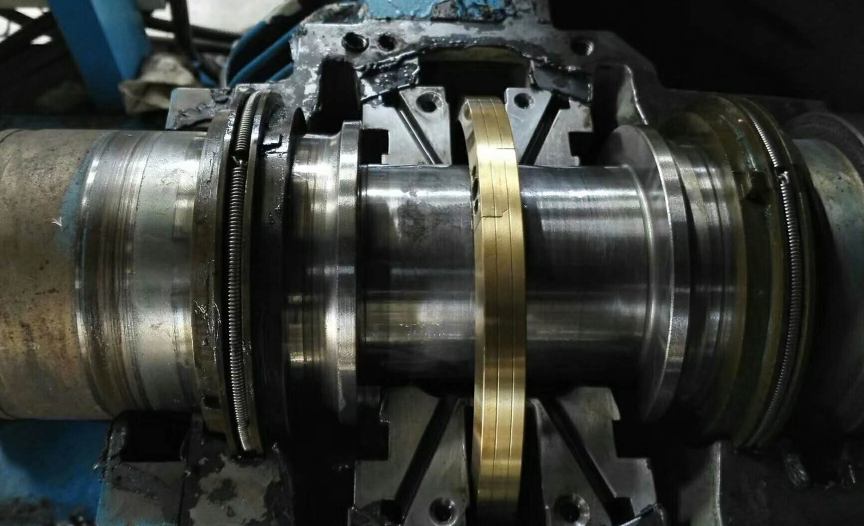

軸承座內部結構

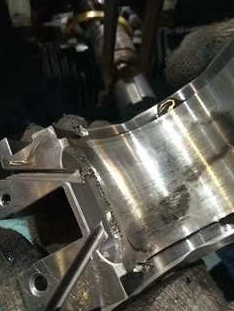

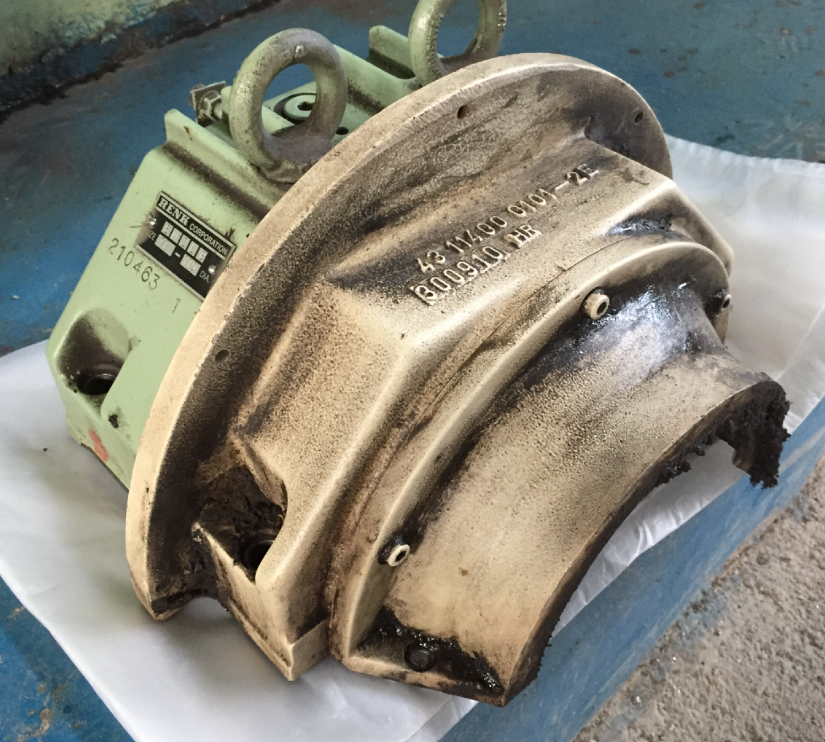

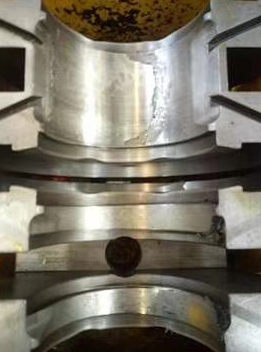

現場需要更換的軸瓦

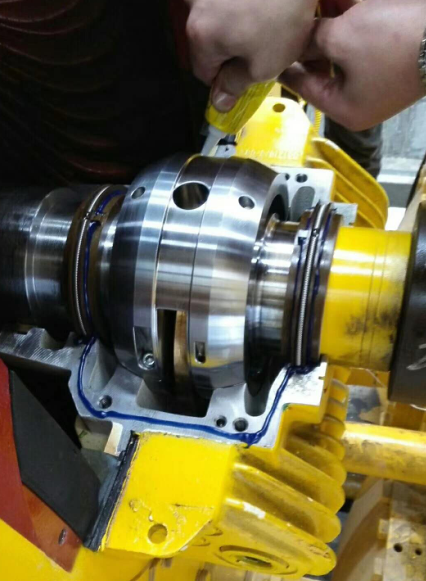

現場更換軸瓦、油封、油環
推薦閱讀：
◎歡迎您留言咨詢，請在這里提交您想咨詢的內容。
留言咨詢
Bearing shell in halves,
type EMZLQ 28 315 H7
machined for oil circulation,
with plain cylindrical bore,
with a peripheral groove
arranged for
- shaft vibration measurement
Without thrust, non-loc. bearing
